LED TV Lighting

---

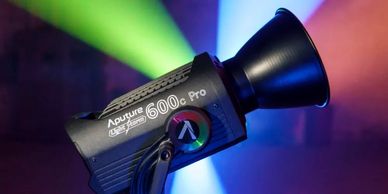

SPECIFICATIONS

• CCT                                             5600K
• CRI                                             ≥96
• TLCI     ≥98
• CQS                                             ≥95
• SSI (D56)    ≥73
• TM-30 RF (Average) 93
• TM-30 RG (Average) 102
• Beam Angle (No Accessories) 66°
• Beam Angle BM1215 Bowens Mount Hyper Reflector (Narrow) 15°
• Beam Angle BM1230 Bowens Mount Hyper Reflector (Medium) 30°
• Beam Angle BM1245 Bowens Mount Hyper Reflector (Wide) 45°
• F10 Fresnel 15° ~ 45°
• Lumens 126,413 lm
• Max Power Output ≤1,200W
• Max Power Consumption ≤1,440W
• Max Operating Current 15A Max
• Operating Voltage (Power Supply) 100V~240V, 50Hz/60Hz

SPECIFICATIONS

• CCT 2,300K – 10,000K
• CRI 95
• TLCI 98
• CQS 96
• SSI (D56) 74
• SSI (Tungsten) 85
• TM-30 RF (Average) 93
• TM-30 RG (Average) 100
• Beam Angle (No Accessories) 93°
• LS 600 Series Hyper Reflector 62°
• BM1215 Bowens Mount Hyper Reflector (Narrow) 23°
• BM1230 Bowens Mount Hyper Reflector (Medium) 53°
• BM1245 Bowens Mount Hyper Reflector (Wide) 69°
• F10 Fresnel 25-70°
• Lumens 35,686lm
• Max Power Output 600W
• Max Power Consumption 720W

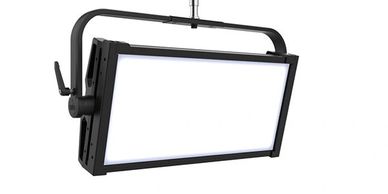

•  Full-spectrum LED 2x1 format soft light panel style fixture for broadcast, film, and special events
• IP65 rating for all weather use indoors or out.
• Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS
• Virtual color wheel with color matched to popular gel colors
• +/- Green adjustment and emulated red-shift via DMX or on-board control
• RDM (Remote Device Management) and CRMX Wireless Control for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Virtually silent operation for use in studio applications
• Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme.
• Easily switch mounting options from Jr Pin to Omega Bracket
• Drop-in slot for diffusers and intensifier filter (sold separately)
• Rugged design for years of rough use in the most extreme conditions.
• Easy to use on-board control with full access to all the features of the fixture without the need for a dedicated controller.
• USB port for fixture software updates
• 28 VDC power input via 3-pin XLR to power the fixture from an external battery pack

The Aputure MC is our first RGBWW film light, featuring bi-color & HSI color control and built-in Sidus Mesh app functionality, in a size that fits anywhere.

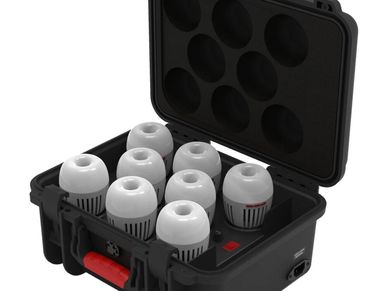

The Accent B7c 8-Light Kit is designed for indie-filmmakers, set lighting technicians, and rental houses, allowing users to simultaneously store, protect, and charge up to eight B7c bulbs; enough lights to fill up an entire scene. A single plug can bring all the bulbs back to life.

 The B7c is also the first bulb designed for filmmakers to have a built-in battery, powering the B7c for over 70 minutes at full power, and over 20 hours as it approaches minimum brightness.

• Full-spectrum LED 1x1 format soft light panel style fixture for broadcast, film, and special events
• IP65 rating for all weather use indoors or out.
• Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS
• Virtual color wheel with color matched to popular gel colors
• +/- Green adjustment and emulated red-shift via DMX or on-board control
• RDM (Remote Device Management) and CRMX Wireless Control for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Virtually silent operation for use in studio applications
• Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme.
• Easily switch mounting options from Jr Pin to Omega Bracket
• Drop-in slot for diffusers and intensifier filter (sold separately)
• Rugged design for years of rough use in the most extreme conditions.
• Easy to use on-board control with full access to all the features of the fixture without the need for a dedicated controller.
• USB port for fixture software updates
• 28 VDC power input via 3-pin XLR to power the fixture from an external battery pack

 Kit of 8 PixelBricks with essential accessories stored in a durable protective plastic case with wheels and retractable handle. With the included PowerBox you can charge your lights in the case to get them ready for their next job. For longer installations, the PowerBox can be taken out of the case to supply power and data via the optionally available Power/Data Combination cables.

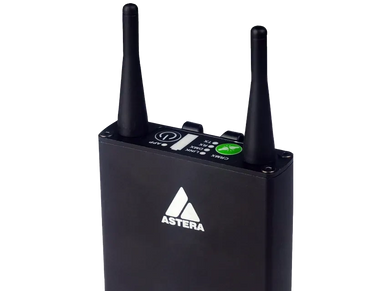

 AsteraBox is an interface between lights and controller. It can be used as a wireless DMX transceiver with CRMX technology and also works as Bluetooth Bridge between AsteraApp and lights. Its built-in battery enables an easy and time-saving setup, just like with all of Astera’s products.

Available Accessories:

-Light Diffusion

-Medium Diffusion

-Heavy Diffusion

-Honeycomb

-SnapGrid 40deg

Available Accessories:

-All Lenses Available

-All High Definition Lenses

-Iris

- Template Holder (A & B Size)

-Gobo Rotator

• Full Color LED (RGBAL) ERS-style lighting fixture for theatre, film and production
• Fully IP65 rated for seasonal use indoors or out
• Use of our standard Ovation beam shaping shutters and lenses lends familiarity and ease of use to the fixture
• Virtual Color wheel with color matched to popular gel colors
• Color Temperature Presets from 2800 K to 6500 K with high CRI and CQS
• Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
• Flat, even field of light for superior gobo projection
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

• Extremely smooth, uniform output.
• Homogenised RGBA colour mixing.
• Pixel control to 76mm/3in increments.
• High CRI of 92.
• Theatrical grade dimming.

Intense 10-cell batten perfect as a blinder, footlight or tunable warm-white

Emulated “red shift” to mimic incandescent fixtures perfectly

16-bit dimming control for smooth, perfect fades

Strobe functionality for high-impact effects on-the-fly

Pixel mappable for intense chase and strobe effects

Included floor plate for easy ground level mounting

Easy to use OLED display

Adjustable Pulse Width Modulation (PWM)

RDM (Remote Device Management) for added flexibility

 Colordash Batten-Quad 12 is a linear wash fixture with 12 individually controllable quad-colored RGBA LEDs that produce any variation of white as well as richly saturated colors due to the inclusion of amber LEDs. It pixel maps beautifully when used in multiples because it maintains an even pixel pitch.

COLORdash Par-Hex 7 adds the brightness and intensity of ultraviolet light to any design without requiring a separate UV filter. Featuring seven RGBWA + UV LED chips, it produces a rainbow of deeply saturated colors, plus any variation of white and bold UV with no distractive multi-colored shadows.

• Rugged RGBWA-UV LED wash for events where indoor/outdoor flexibility is needed
• At home in any weather conditions with IP rated power and DMX connections
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• RDM (Remote Device Management) for added flexibility
• Selectable, smooth dimming curves for eliminate flicker and choppiness in fades
• Easy to read OLED display with password protection and touchscreen interface
• Advanced optics provide exceptional color mixing and high efficiency
• Double-bracketed yoke doubles as floor stand

 Colordash Par-Quad 7 is an ultra compact and durable wash light that fits in places where other fixtures cannot. Seven quad-colored RGBA LEDs project deeply saturated colors and variations of white at a variety of preset color temperatures and without multi-colored shadows. A split-yoke bracket eliminates the need for floor stands. Power linking with locking Neutrik® powerCON® power in and out and 3- and 5-pin DMX connectors ease connections and setup. Colordash Par-Quad 7 also includes a gel frame holder and gel frame.

• DMX Channels 3, 4, 5, 9 or 13
• 16-bit dimming
• RGB LED colors
• Color temperature presets (2,800 to 10,000 K)
• Electronic dimmer
• RGB color mixing with or without DMX control
• Built-in automated programs via DMX
• Recall custom programs via DMX
• Five distinct dimming curves

The ADJ Event Bar Pro helps you create pure lighting excitement with powerful, sharp white beams of light. It produces small 5-degree beams from exciting built-in programs. The Event Bar Pro’s base has built-in DMX In/Out, IEC power In/Out connectors, a 4-Button DMX digital display, built-in microphone for sound activation
