Console

---

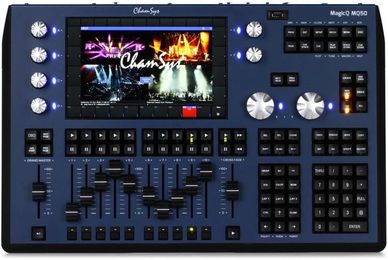

 MagicQ MQ50 is part of the new generation of compact consoles, ideal for small to medium sized venues. The MQ50 features a 10.1” Multi touch display and ten full Cue Stack playbacks in a compact format.

The console supports 8 universes, with 4 assignable physical DMX outputs supporting RDM and a network port for ArtNet and sACN output. This feature packed console also includes WIFI inbuilt to the console for quick and easy connection to ChamSys MagicQ Remote focus application without the need for external networking hardware or any networking knowledge.

MagicQ MQ50 is simple and easy to use for installations, clubs and schools while still featuring advanced features such as MagicVis and MagicHD connectivity. It uses the same software and show formats, enabling compatibility between all products in the MagicQ range.

 24 Total Channels DMX-512 (1990) Output
 7 Segment Information Display
 Scene Master Fader Playbacks
 Scene Master Bump Playbacks
 10 Programmable Chases
 5 Built-In Chases
 Tap Sync Speed (0.1 sec to 10 min)
 Separate Speed & Fade Control for Chase Playback
 X & Y Manual Scene Crossfade
 Audio Trigger
 MIDI Trigger
 Passcode Protected Chases

• Universal DMX controller capable of handling all the complexities of today’s lighting fixtures
• Easily control up to 12 intelligent lights with up to 32 channels each
• Includes 384 channels of DMX control and 30 banks of 8 scenes for a maximum of 240 scenes
• Enhance light shows with 6 sets of chase effects containing 240 scenes
• Increase effects with fog and strobe control, reversible sliders, beat activation, tap-sync and auto run
• Capability to grab any fixture on the fly, reassign channels and sequentially link chases
• Increase flexibility with MIDI compatibility, DMX polarity selector and assignable pressure-sensitive joystick
• Conveniently mounts using the 4-space (4U) mounting rack

• Compact DMX controller designed for LED fixtures with up to 4 channels
  - Channel 1: red
  - Channel 2: green
  - Channel 3: blue
  - Channel 4: white (or amber)
• Easily controls up to 4 separate fixtures
• Increase effects by simultaneously operating each fixture in different playback modes with variable fade times
• Increase flexibility with playback options that include manual RGBA/RGBW, automated and sound-activated mode
• Playback modes:
  - Preset: 9 built-in colors
  - Chases: manually trigger automated programs
  - Color macro: manually scroll through the color spectrum
  - RGB fade: automatically scroll through the color spectrum
  - RGB fade delay: automatically scroll through the color spectrum with a small delay to each fixture
  - Auto: randomly selects different colors for each fixture
• Increase control with adjustable audio sensitivity as well as strobe and blackout effects

The XRC-200 is an easy to use DMX recording and replay unit. The operating concept is similar to a CD player and can be used by non-professionals.

The sequences are recorded from a lighting console, or other DMX output device, onto the device. The XRC-200 replays the recorded sequences in real time.

With the ability to record 2 DMX universes (1024 DMX channels), the XRC-200 is also suitable for LED and moving light applications/installations. A variety of applications in architecture and entertainment, tradeshow, retail and museum lighting are covered with the XRC-200.

The optional XRC-CT15B contact box with 15 inputs for dry contacts allows a customized integration of triggers for control of the XRC-200. In addition, the XRC-200 has an internal timer for show and device control. The device can also be set up to be remotely operated or triggered by DMX. During live shows, the XRC-200 can be used as a DMX backup device.

The sequences and settings of the XRC-200 can be stored and managed with the XRC-200 PC software via USB.

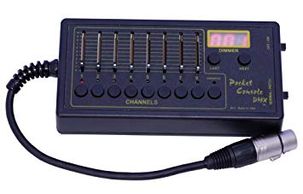

• It is small, lightweight, portable and designed to be hand held
• Levels are set using eight faders (slider pots)
• Each FADER has an associated bump button
• 512 dimmer addresses are patchable to any of the eight faders/li>
• The faders are patchable using from 0 to 512 dimmer addresses per fader
• The unit is powered by a 9v battery OR by a 120v AC power supply

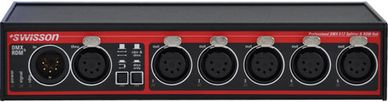

• High level of reliability
• Boosts DMX & RDM
• Regenerates DMX & RDM
• Reduces reflection problems
• Distributes DMX & RDM
• Optical isolation on each individual port

• Art-Net and sACN to DMX converter for up to 8 independent universes
• Supports Art-Net 1 through 4 (DMX and RDM)
• Supports sACN
• Up to 8 individually optically isolated DMX ports, each configurable as input or output
• Graphic display and encoder knob for easy configuration and precise status information
• Quick access button for each DMX output port for quick selection of Art-Net or sACN universe
• Neutrik powerCON input and output
• Universal power supply

• 16 Gigabit Ethernet ports
• Simple plug-and-play setup with no software to install or configuration needed
• Supports desktop or wall mount placement
• Energy efficient design compliant with IEEE8023az
• Silent operation ideal for noise sensitive environment

• 8 Gigabit Ethernet ports
• Simple plug-and-play setup with no software to install or configuration needed
• Supports desktop or wall mount placement
• Energy efficient design compliant with IEEE8023az
• Silent operation ideal for noise sensitive environment

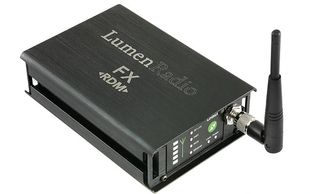

• Single Universe Flex unit – Transmitter or Receiver
• DMX512-A and RDM support
• Ethernet or wired DMX input/output
• Compatible with W-DMX™ transmitters

 Supported protocols:

• USITT DMX512, DMX512(1990) & DMX512-A
• RDM ANSI E1.20 (Controller and Proxy)
• Streaming ACN (Draft and Final)
• ArtNet I, II & 3
• Pathport
• Strand ShowNet
• ETCNet 2 & 3
• KiNet V1 & V2

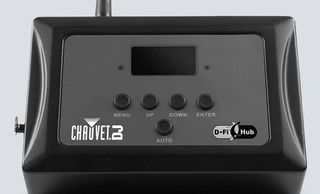

 D-Fi Hub is a compact, easy-to-use DMX unit that functions as either a transmitter or receiver. For more stable communication between units, it operates on a 2.4 GHz frequency range and includes an “auto” function which automatically finds the best frequency and syncs the units effortlessly.

• 1 Finger-sized wireless D-Fi transceivers provide instant wireless communication
• Transfers DMX as well as master/slave signals between similar fixtures
• Eliminates the need for DMX cables
• Plugs directly into USB-compatible devices
• Works without the need of an external power supply
• Fully FCC/RTTE compliant

• DMX Channels: 512
• DMX Connectors: 3-pin XLR
• Max Unobstructed Distance: (Wi-Fi™): 100 ft (30.5 m)
  (D-Fi™): 600 ft (183 m)
• Maximum Run Time: up to 8 hours
• Recharge Time: 4 hours

• DMX Channels: 512
• DMX Connectors: 3-pin XLR
• Input Voltage: 9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
• Power and Current: 4 W, 0.1 A @ 120 V, 60 Hz
  4 W, 0.1 A @ 230 V, 50 Hz
• Weight: 1.2 lb (0.6 kg)
• Size: 5.59 x 3.58 x 1.81 in (142 x 91 x 46 mm)
• Approvals: CE, FCC

• Based on ShoW DMX Neo technology.
• Compatible with all ShoW Baby and ShoW DMX Neo systems.
• LED indicators provide visual confirmation of signal strength, receiver/transmitter operation mode and data presence.
• Up to 72mW ETSI broadcast power.
• RDM capable with proxy and responder functions.

The JMAZ Wi-MAZ Wireless Transceiver is a  compact wireless DMX transmitter/receiver which can control up to 7 universes. Universes are marked with a coloured LED in the chassis. You can use multiple receivers on a single transmitter.

Compact wireless DMX transmitter & receiver

Works with any DMX controller

Operating frequency 2.4~2.525GHz

7 DMX universes

City Theatrical‘s DMXcat® system is designed for use by the lighting professional who is involved with the planning, installation, operation, or maintenance of theatrical and studio lighting equipment. The system consists of a small hardware interface device and a suite of mobile applications. Together, they combine to bring  DMX/RDM control plus several other functionalities to the user’s smartphone for use wherever and whenever they are needed. Developed with input from designers and technicians, the DMXcat is an indispensable tool for lighting users.

The XMT-120A is the new generation of powerful DMX512 measurement and test equipment for architecture, entertainment, film and TV lighting and installations using DMX512. The versatile functions of the XMT-120A simplify the debugging of lighting and installations, or any application where DMX is used to control lighting.

The unit can monitor DMX512 signals as well as analyze and display them. The device can also generate DMX512 signals and supports the control of more complex DMX512 fixtures such as moving lights. The testing of RGB LED lighting with many channels is easy to do with the XMT-120A. With additional features such as cable tester, timing analysis, sequence editor, channel "tracer", dip-switch display, flicker finder, and min / max display, this device is ideal for troubleshooting and resolving DMX512 signal challenges and yet remains very simple to operate.

The XMT-120A can be connected via USB to a PC. The Windows tool allows for managing the fixture library for intelligent devices and uploading firmware updates.
